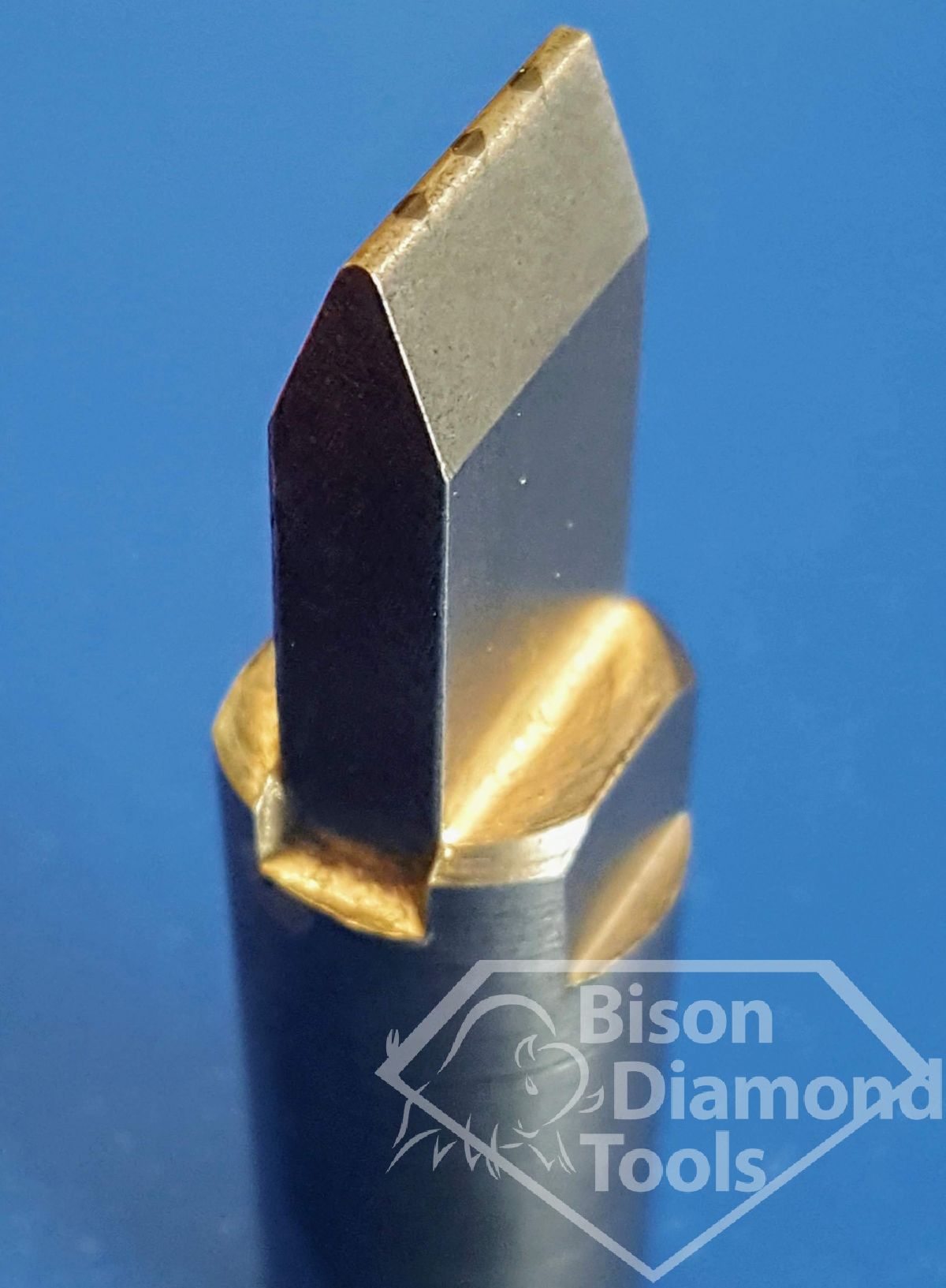

BTM-38.Studer MCD 3 Log Profile & Straight Dressing Tool

Inserts are arranged at 45 degrees into the 5mm thick X 10 mm wide dressing blade. 3  logs 0.8mm x 0.8mm x 5mm equally-spaced set on centre with 0.2mm (0.008”) – 0.5mm (0.020″) lapped radius. Included 40 degree angle on the side of the blade.Number 1 Morse Taper 20mm long shank.BTM-3810. O.25mm (0.010”) Radius. BTM-3820. 0.5mm (0.020”) Radius.
