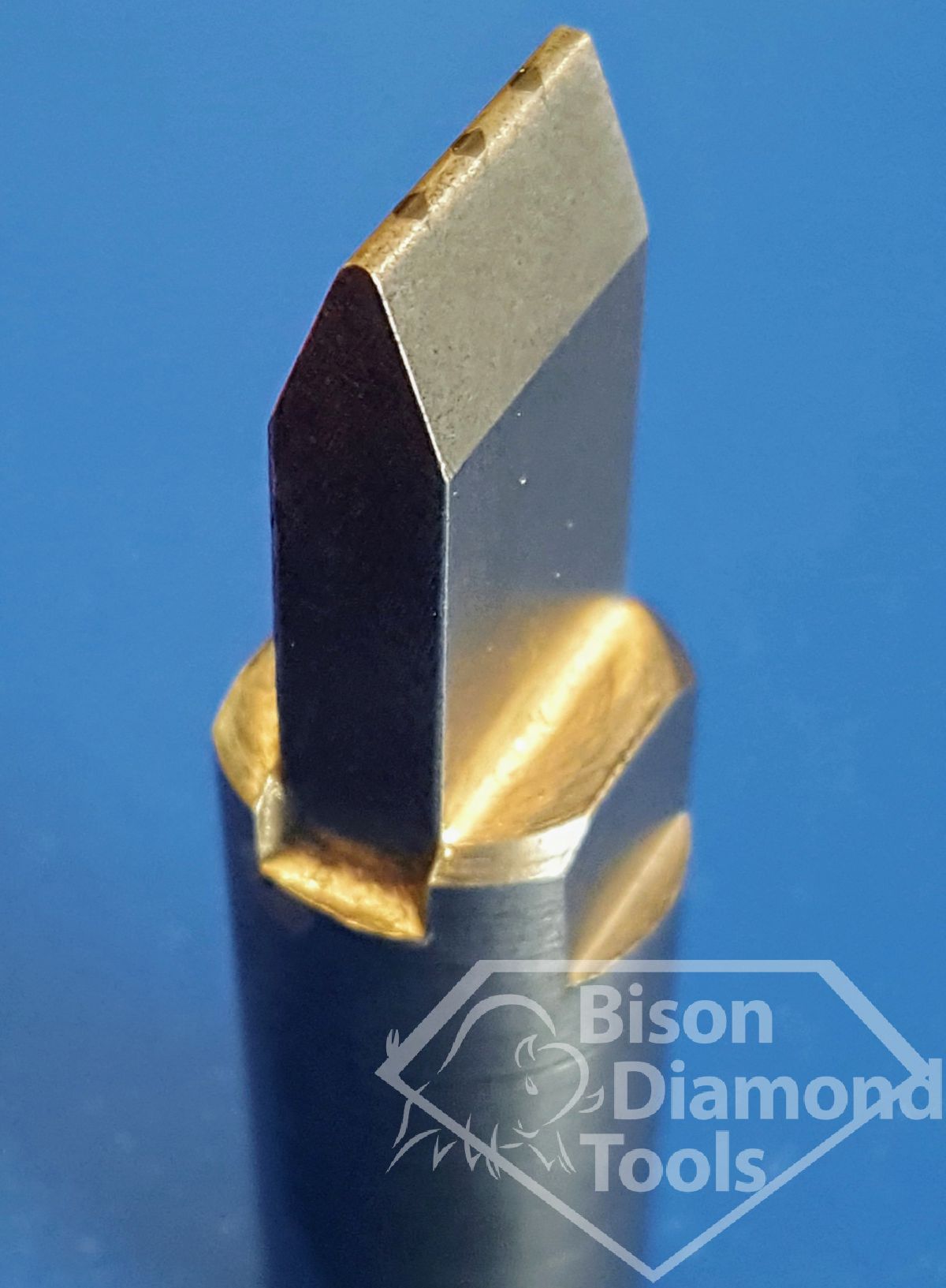

Inserts are arranged at 45 degrees into the 5mm thick X 10 mm wide dressing blade. MCD logs 0.8mm x 0.8mm x 5mm equally-spaced set on centre with 0.2mm (0.008”) – 0.5mm (0.020″) lapped radius. Included 40 degree angle on the side of the blade. Number 1 Morse Taper 20mm long shank.BTM-38-10. O.25mm (0.010”) Radius. BTM-38-20. 0.5mm (0.020”) Radius.
